Lavadora de arena de espiral

Product Introduction:

Our Spiral Sand Washing Machine (also named Screw Sand Washer) is a core equipment for sand & gravel aggregate cleaning, specially designed for separating mud, dust, clay and other impurities from manufactured sand, river sand, weathered sand, tailings sand and construction recycled sand.

Adopting horizontal trough structure and multi-stage spiral flipping washing technology, it realizes high-efficiency mud removal, dehydration and classification of sand materials in one process, widely used in sand & gravel yards, mines, concrete mixing plants, quarry processing lines and mine tailings recycling projects.

Core Technical Advantages:

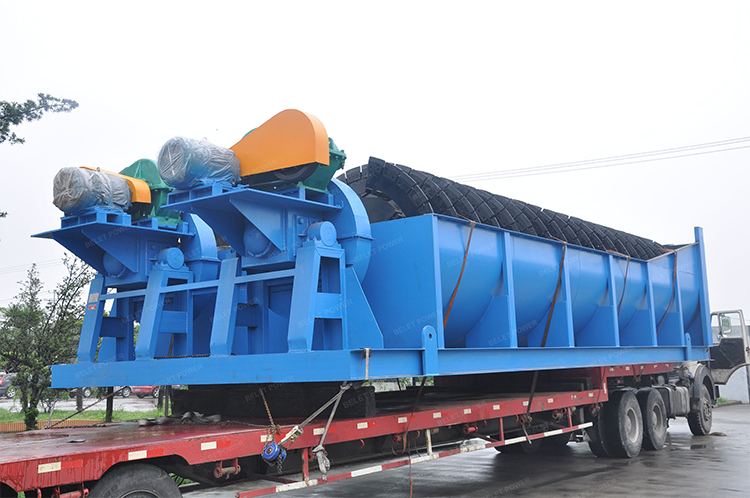

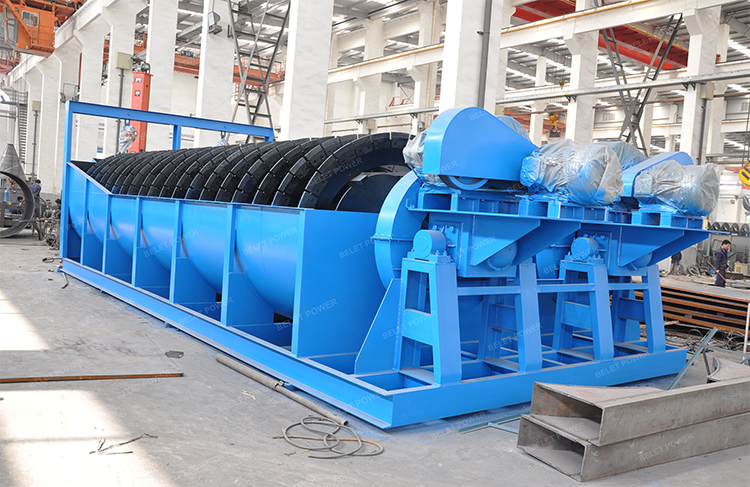

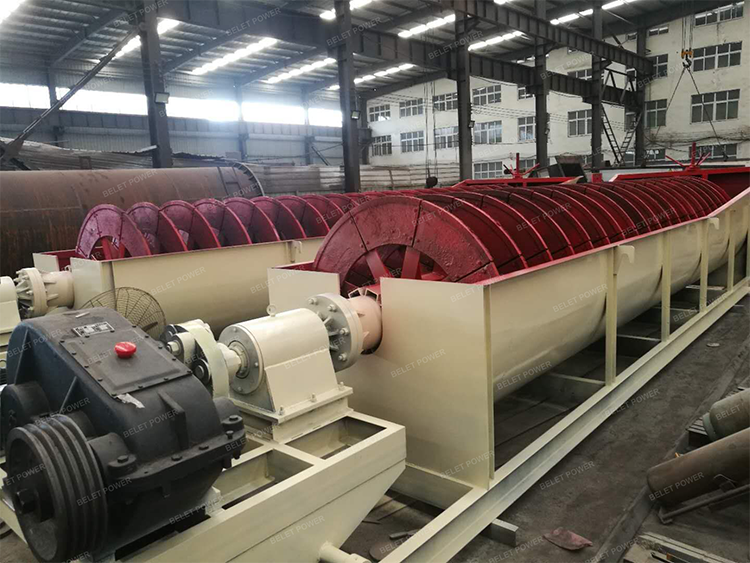

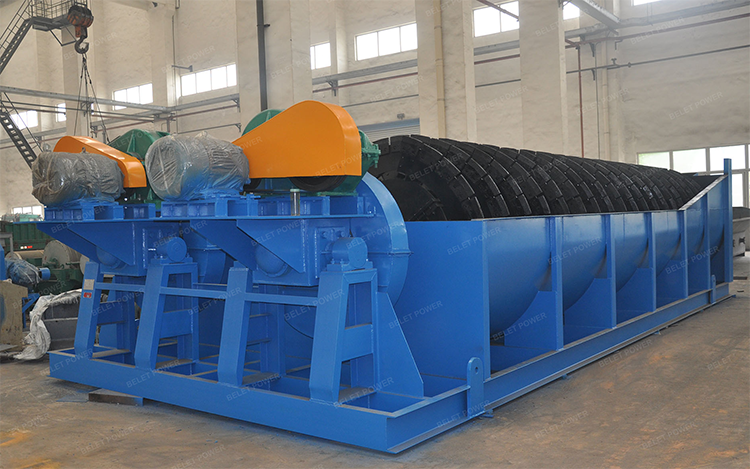

Dual Spiral / Single Spiral Optional, High Cleaning Efficiency

Horizontal long trough multi-stage washing structure, spiral blades continuously flip sand materials, fully contact with water to separate mud and impurities thoroughly; compared with wheel sand washers, it has better cleaning effect for sand with high mud content (adapt to mud content ≤30%), and the finished sand fineness modulus is more stable.

Heavy Duty Wear-Resistant Structure

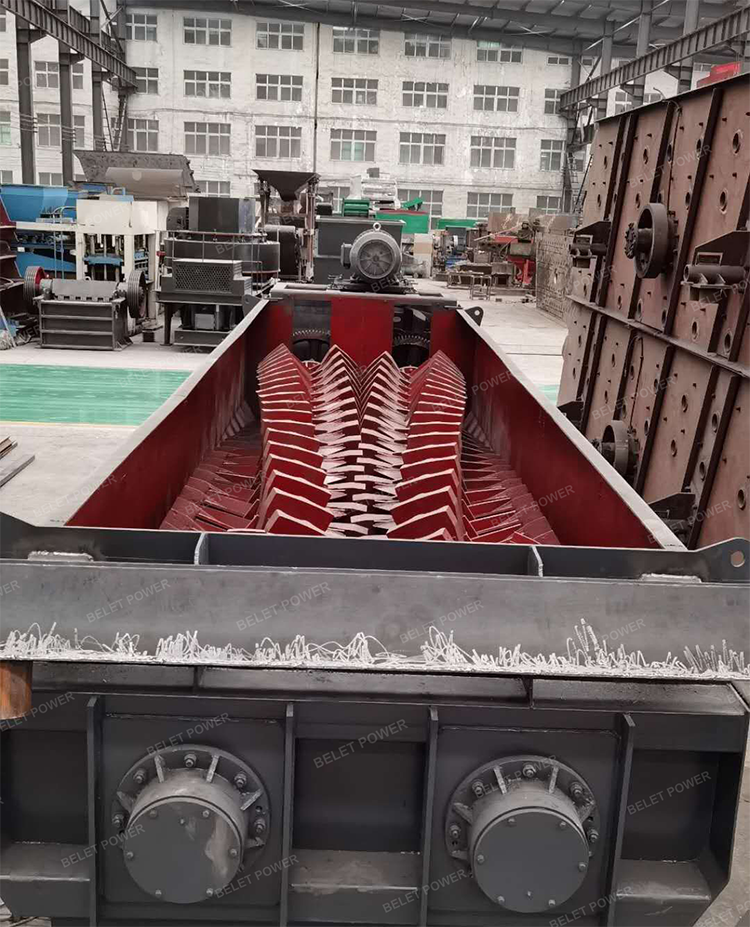

Spiral blades: High manganese wear-resistant steel casting, thicknessened design, anti-wear, anti-corrosion and anti-fatigue, suitable for 24/7 continuous heavy-duty production, service life increased by 50% compared with ordinary blades.

Trough body: Thickened steel plate integral welding, sprayed with anti-rust and wear-resistant paint, strong rigidity, no deformation during long-term operation.

Key vulnerable parts (spiral liner, wear plate): Adopt high-strength wear-resistant materials, reduce maintenance frequency and cost.

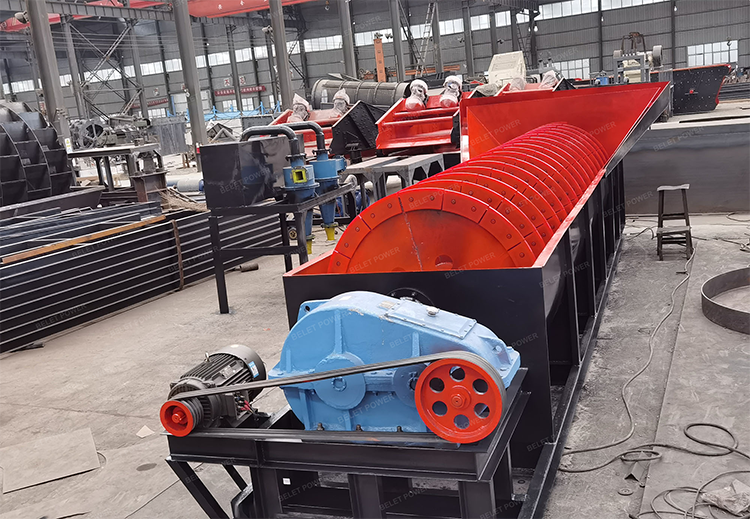

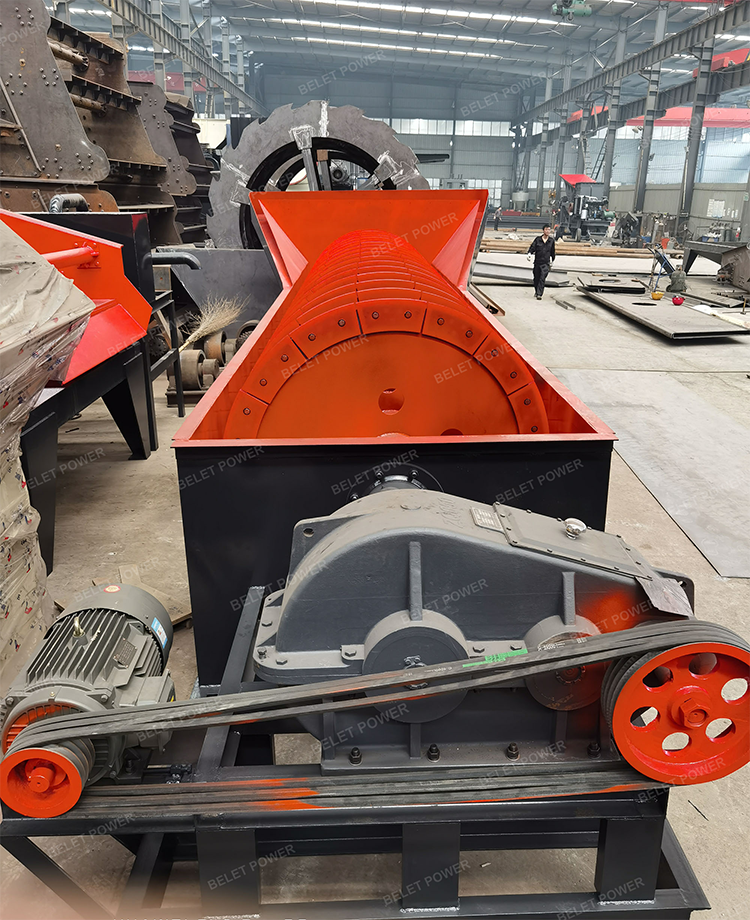

Energy-Saving & Stable Transmission

Equipped with frequency conversion motor and hard-tooth surface reducer, low-speed stable operation, low noise, low vibration; power consumption is 20-30% lower than traditional spiral sand washers, realizing energy-saving and efficient production.

The transmission part is separated from water and sand, avoiding wear and corrosion, ensuring long-term stable operation of the equipment.

Low Sand Loss & High Dewatering Efficiency

Unique spiral pushing structure, fine sand loss rate ≤3%, effectively retain fine sand resources; integrated dewatering zone, finished sand moisture content ≤15%.

Large Processing Capacity & Flexible Configuration

Single machine processing capacity: 20-500t/h (optional according to model), adapt to small, medium and large-scale sand production lines; can be matched with jaw crusher, impact crusher, sand making machine, vibrating screen and other equipment to form a complete set of sand & gravel processing production line, customized configuration according to customer's site and output requirements.

Application Scenarios

-- River sand cleaning plant

-- Manufactured sand production line (quarry)

-- Mine tailings sand recycling

-- Construction waste recycled sand treatment

-- Concrete mixing plant aggregate cleaning

Why Choose Us?

-- 15+ years experience in sand & gravel processing equipment manufacturing

-- CE / ISO certification, export to 60+ countries (Algeria, Australia, Southeast Asia, Middle East, etc.)

-- Customized design: According to site size, output, raw material type to customize spiral sand washer model

-- One-stop service: Free process design, on-site installation guidance, 24-hour after-sales technical support
