Estación de trituración de cono móvil

La estación de trituración de cono móvil es para trituración secundaria y terciaria de roca dura, granito, basalto, mineral de hierro y otros materiales de alta abrasión.

Como fabricante profesional de equipos de trituración móvil, nos enfocamos en la innovación tecnológica para resolver los problemas de las trituradoras de cono fijas tradicionales.

Nuestras estaciones están diseñadas para condiciones extremas, sobresaliendo en el procesamiento de materiales de alta dureza (dureza Mohs 6-9) con rendimiento estable y costos de mantenimiento ultrabajos.

Características técnicas principales:

1. Sistema de trituración laminado patentado: forma de partícula superior y alta eficiencia

Nuestra trituradora de cono móvil está equipada con una cavidad de trituración laminada patentada, utilizando el principio avanzadode trituración "material contra material" en lugar del impacto tradicional metal contra material. This design ensures full, uniform squeezing and grinding of materials in the cavity, eliminating over-crushing and boosting crushing efficiency by 30% compared to conventional cone crushers. The finished product features a perfect cubic shape, ultra-low needle-flake content (<5%), and consistent particle size, fully meeting the strict standards for high-grade construction aggregates, railway ballast, and asphalt concrete.

Fitted with high-chromium molybdenum vanadium alloy wear-resistant liners, our crushers offer 60% higher wear resistance than standard manganese steel liners, extending service life by 12-18 months and reducing liner replacement frequency by 40%. With a maximum feed size of 500mm and a crushing ratio of up to 1:18, the station can directly process raw ore into high-quality 5-40mm finished products in one step, eliminating the need for secondary crushing and saving significant time and labor costs.

2. Sistema de control hidráulico inteligente: operación segura y ajuste con un clic

Integrated with a PLC intelligent hydraulic control system, our mobile cone crusher supports one-key start/stop, stepless adjustment of the discharge gap (5-40mm), and real-time monitoring of all key operating parameters (temperature, load, oil pressure, vibration, etc.). The built-in hydraulic overload protection device automatically lifts the fixed cone to discharge uncrushable foreign objects (such as iron blocks) in 0.3 seconds, preventing equipment damage and ensuring 24/7 stable operation in harsh mining environments.

The system also features a fault self-diagnosis function that can quickly identify 20+ common faults (e.g., bearing overheating, hydraulic leakage, liner wear) and display targeted maintenance suggestions, reducing unplanned downtime by 60%. A linked thin-oil lubrication system ensures all core components (eccentric shaft, bearings) are fully lubricated at all times, further extending the equipment's service life.

3. Chasis móvil integrado de servicio pesado: adaptabilidad a todo terreno y despliegue rápido

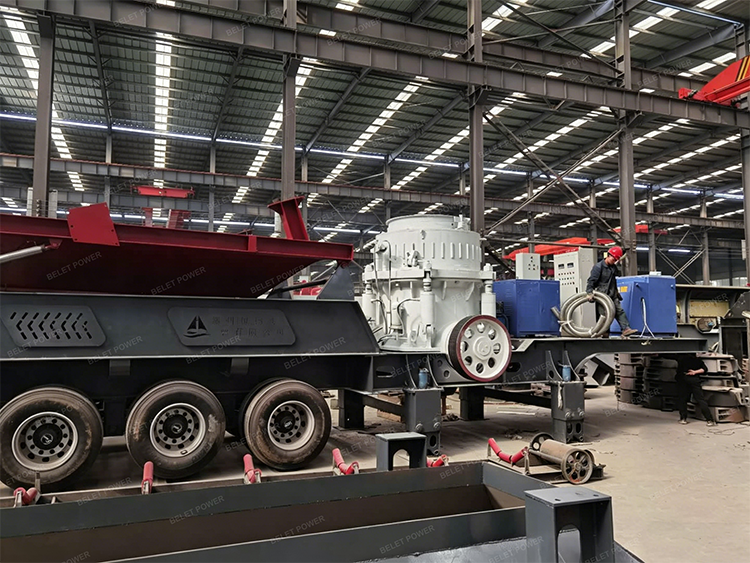

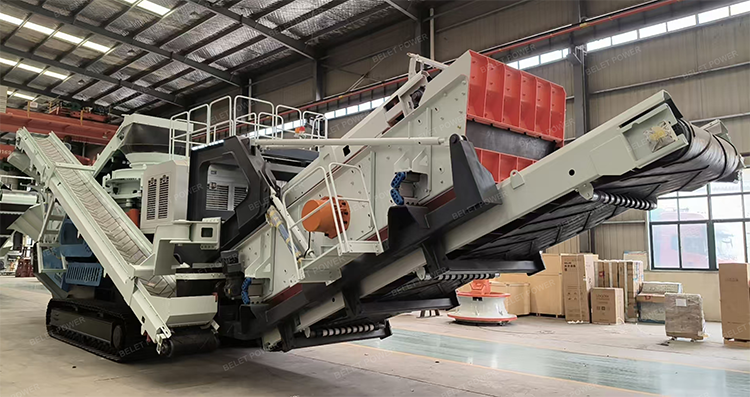

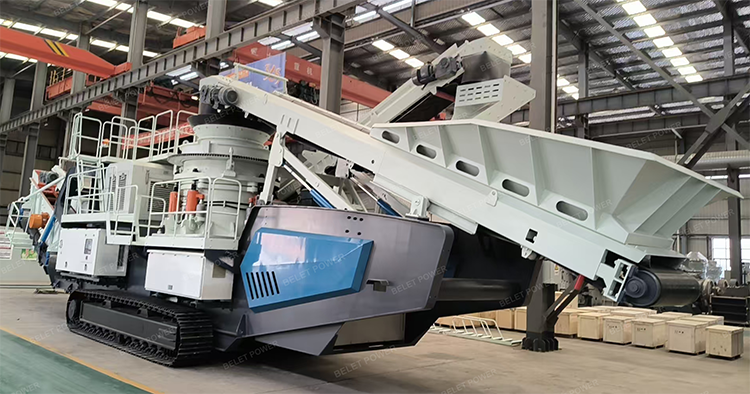

Adoptando un diseño de chasis integrado de acero pesado, elimina la necesidad de cimientos de concreto. The wheeled chassis is equipped with 3-axle heavy-duty tires, hydraulic suspension, and a maximum travel speed of 28km/h, making it ideal for long-distance transportation between job sites. The optional tracked model features a low-ground-pressure crawler system with a 30° climbing capacity, easily navigating uneven, muddy, or remote terrains common in African mines and Southeast Asian mountainous areas.

Both models can be fully deployed in ≤2 hours on-site, saving 30-60 days of foundation construction time compared to fixed crushing plants. The integrated hydraulic outriggers enable quick leveling and stable operation, realizing "on-site crushing, on-site utilization" and reducing material transportation costs by up to 50%.

4. Diseño de ahorro de energía y protección ambiental: bajos costos operativos y cumplimiento global

Equipped with a high-efficiency energy-saving diesel engine (Cummins/Weichai optional) and a variable frequency speed regulation system, our mobile cone crusher reduces fuel consumption by 25% compared to traditional equipment, with a consumption rate of only 25-32L/h (depending on the model). It also supports grid power connection (380V/50Hz) to further cut fuel costs and reduce carbon emissions by 70%, fully complying with EU CE, ISO 9001, and other global environmental protection standards.

The whole machine adopts a sealed dust-proof and noise-reduction structure with a built-in high-efficiency dust collection system, reducing dust emission to ≤50mg/m³ for a clean, safe working environment.

5. Diseño integrado de cribado y trituración: solución de producción integral

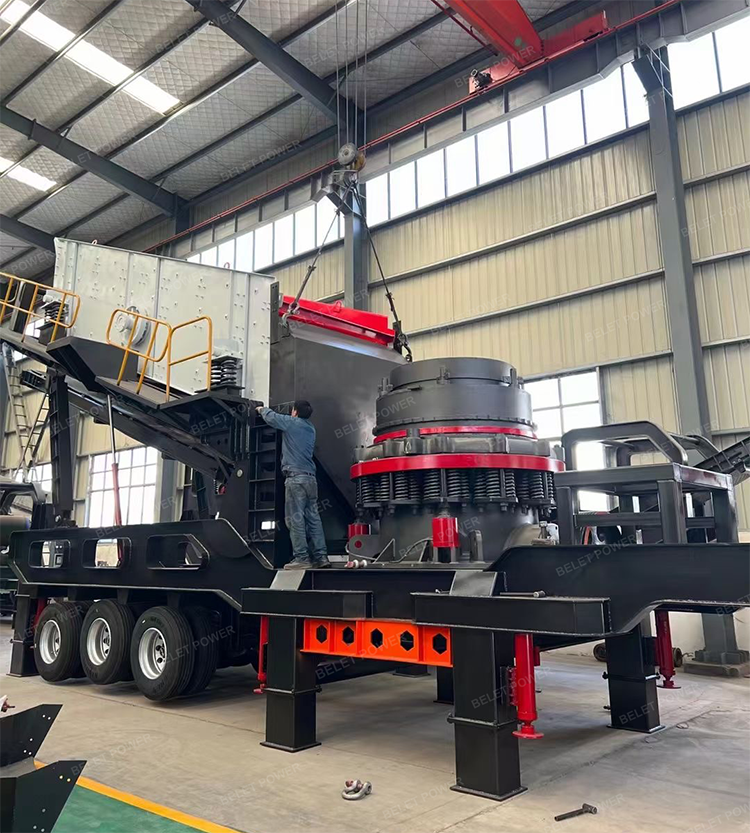

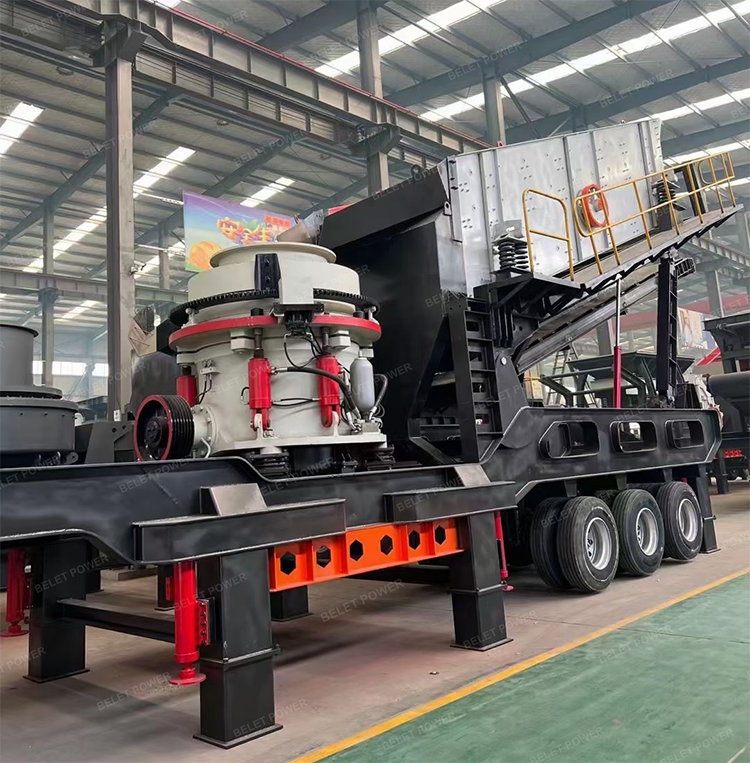

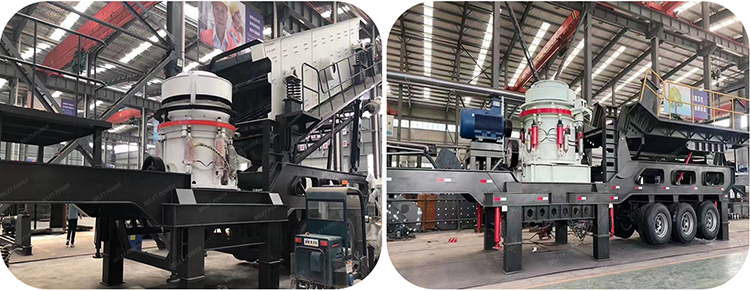

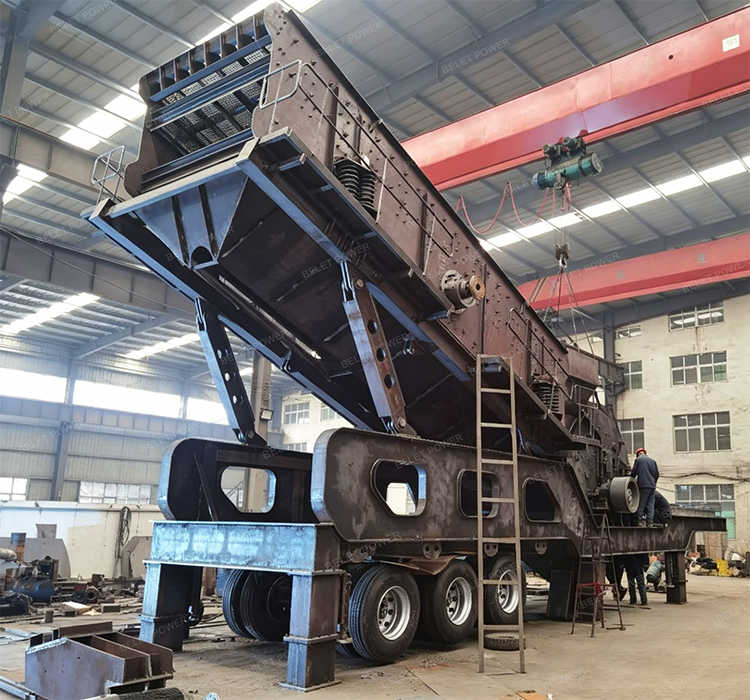

Como se muestra en las imágenes, nuestras estaciones están equipadas con un sistema de criba vibratoria integrada en el chasis. This design eliminates the need for separate screening equipment, reduces on-site footprint, and ensures finished products meet particle size requirements directly. The screen deck is adjustable to produce multiple aggregate specifications (0-5mm, 5-10mm, 10-20mm, 20-40mm) simultaneously, maximizing production flexibility for diverse project needs.

Escenarios de aplicación amplia:

Nuestras estaciones son el equipo preferido de trituración media y fina para:

- Minería: Trituración secundaria/terciaria de granito, basalto, mineral de hierro, cobre, oro

- Canteras: Producción de agregados de alta calidad para construcción y ferrocarriles de alta velocidad

- Construcción de infraestructura: Trituración in situ de residuos de construcción y roca.

- Proyectos remotos: Despliegue flexible en minas de alta altitud y áreas con transporte inconveniente.

Whether you are operating a large-scale mine in South Africa, a quarry in Southeast Asia, or an infrastructure project across Africa, our mobile cone crusher stations deliver the perfect combination of power, mobility, and intelligence to maximize your productivity and return on investment.
