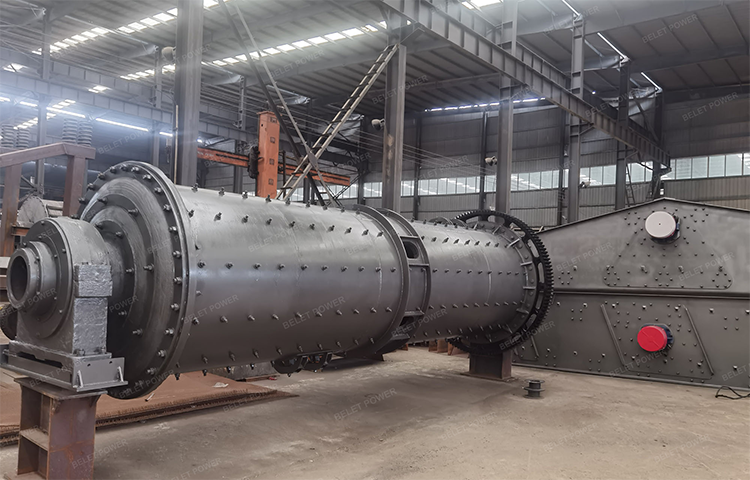

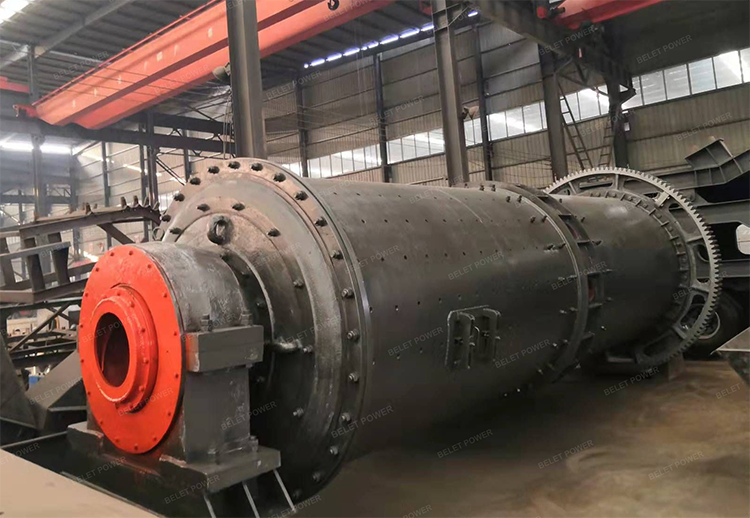

Molino de bolas para mineral de plomo-zinc
The Lead-Zinc Ore Ball Mill is purpose-built for high-efficiency fine grinding of lead-zinc ores in beneficiation plants across South America.
Designed to process both primary and secondary lead-zinc ores, it delivers consistent particle size distribution, maximizing flotation recovery rates for lead and zinc concentrates.
With heavy-duty construction optimized for the harsh, high-altitude and arid mining environments of Peru, Chile, and Mexico, this mill is a reliable workhorse for your lead-zinc processing line.
Core Technical Highlights
High-Efficiency Fine Grinding for Flotation
Advanced grinding media grading and optimized liner design ensure uniform fine grinding, producing the ideal particle size for lead-zinc flotation circuits. This directly improves concentrate grade and recovery rates, reducing reagent consumption and tailings loss.
Heavy-Duty & Wear-Resistant Build
Thick steel shell combined with high-chrome alloy liners withstands the abrasion of hard lead-zinc ores. Reinforced main bearings and a high-torque drive system ensure stable operation under continuous, heavy loads in remote mining sites.
Low Energy Consumption & High Capacity
High-efficiency girth gear and pinion drive reduces power consumption by 15-20% compared to standard mills. The optimized internal flow design boosts throughput, making it ideal for large-scale lead-zinc mining operations.
Customizable for Wet/Dry & Continuous Operation
Available in overflow and grate discharge configurations:
-- Overflow type: Ideal for continuous wet grinding in large-scale lead-zinc mines.
-- Grate discharge type: Suitable for high-capacity coarse grinding stages.
Adaptable to South American Mining Conditions
Designed to operate reliably in high-altitude Andean mines (Peru/Chile) and arid northern Mexico conditions, with dust-proof seals, temperature-resistant bearings, and corrosion-resistant coatings.

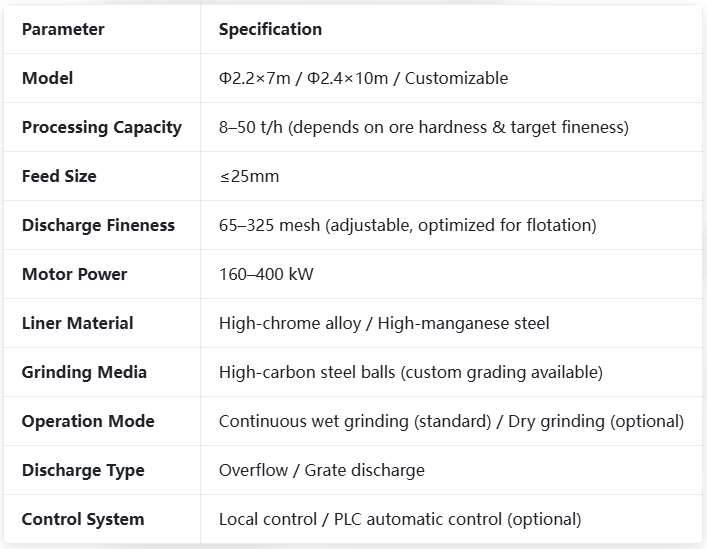

Key Technical Parameters

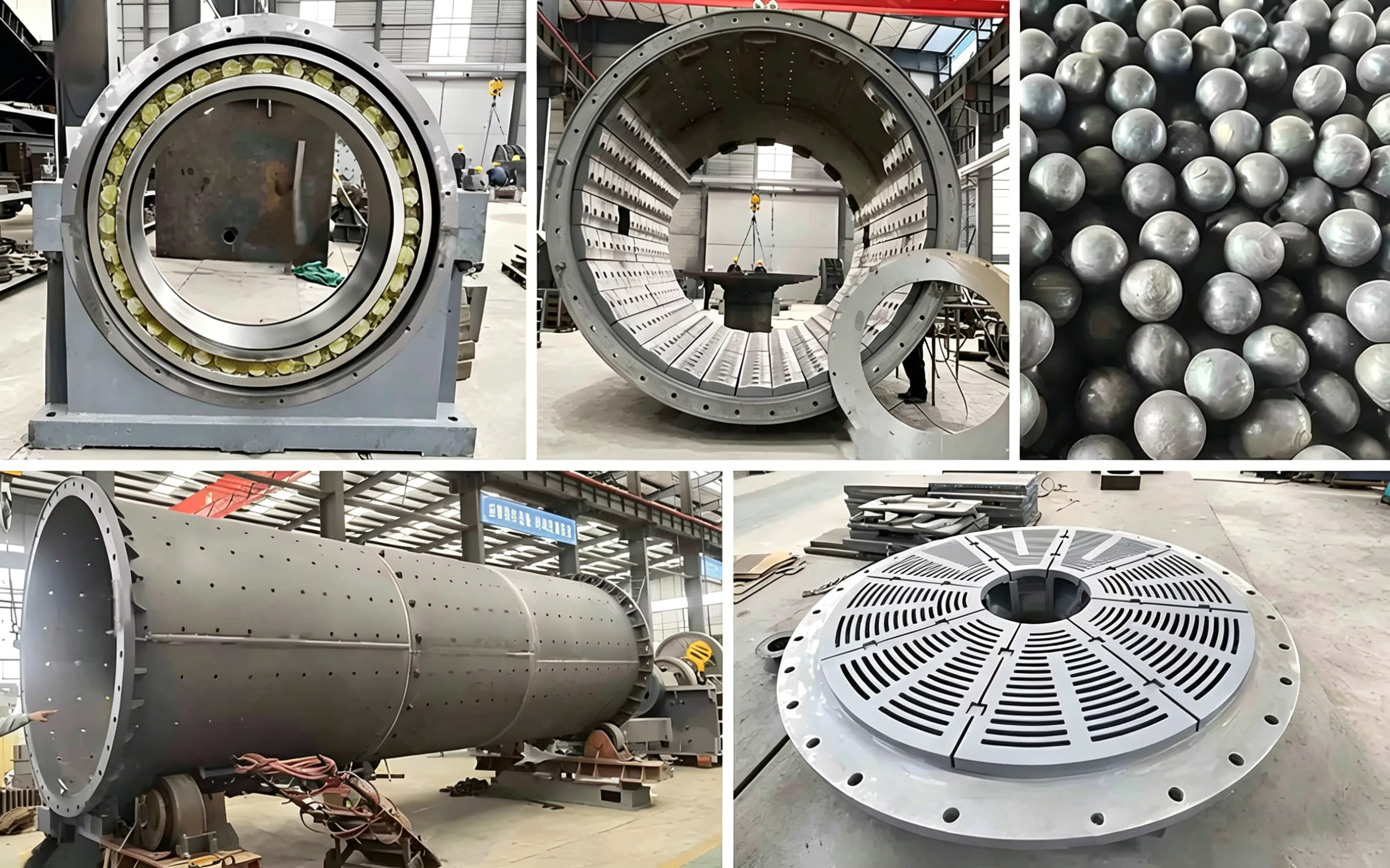

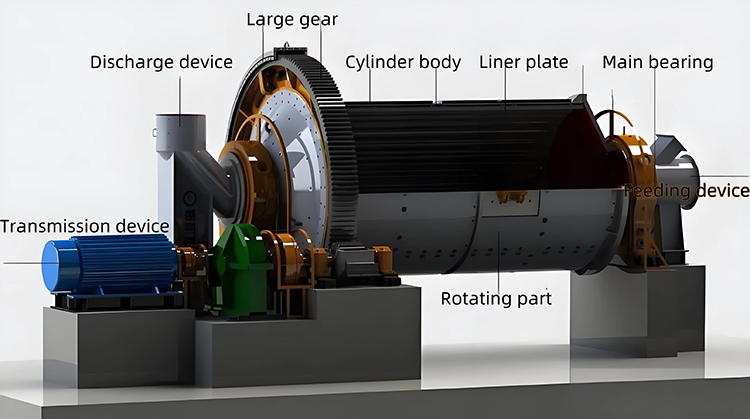

Internal Structure (Key Components)
Mill Shell: Thick steel plate welded construction, stress-relieved for structural stability under heavy loads.

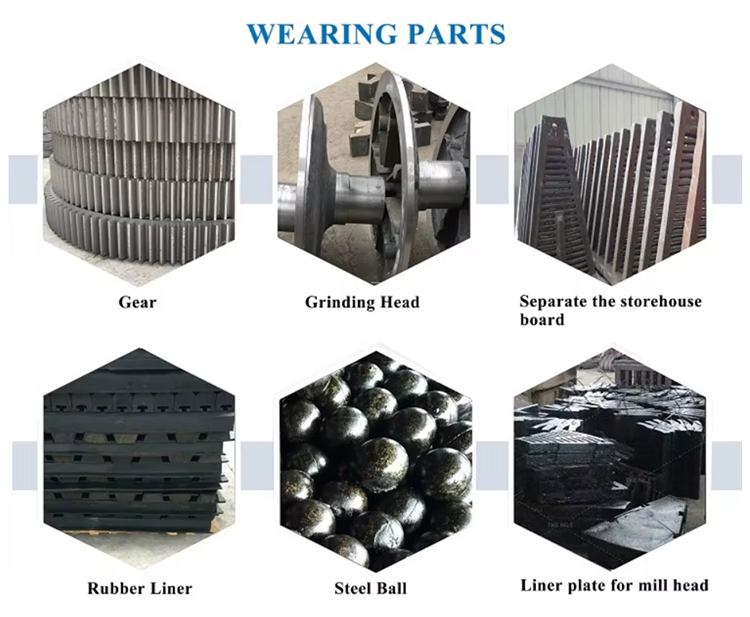

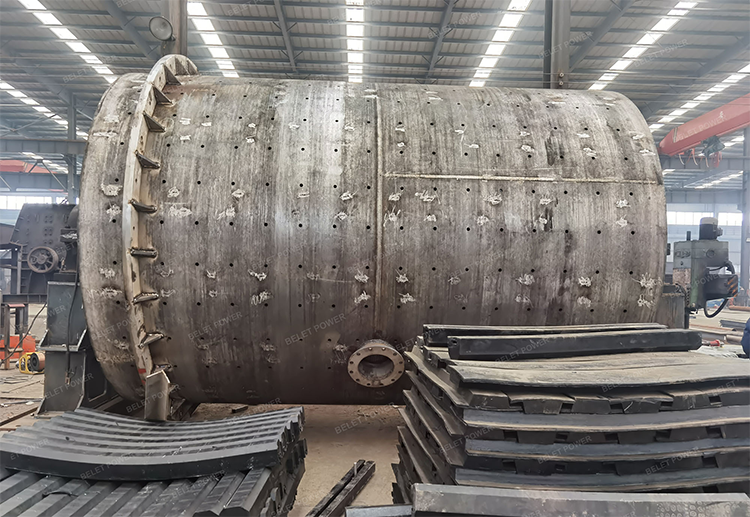

Liner Plates: High-chrome alloy liners with optimized lifter geometry to enhance grinding efficiency and media movement.
Main Bearing Assembly: Large, heavy-duty sliding bearings with forced lubrication for low friction and high load capacity.

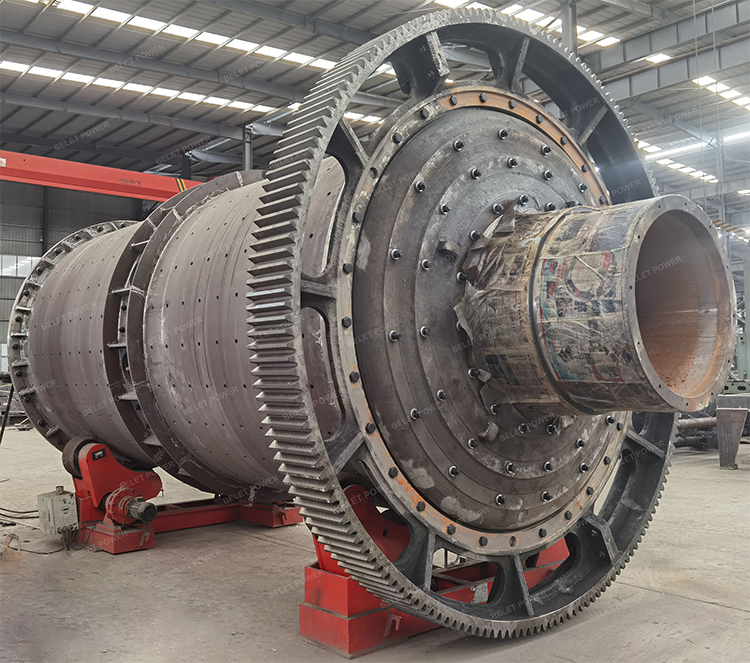

Drive System: Girth gear + pinion drive with high-precision machining, paired with a low-speed high-torque motor.
Feed & Discharge Heads: Cast steel heads with wear-resistant liners, designed for smooth material flow and minimal wear.
Grinding Media: Custom-graded high-carbon steel balls, optimized for your specific lead-zinc ore hardness and fineness requirements.
Why Choose US?
South America Mining Expertise:
Proven performance in lead-zinc mining projects across Peru, Chile, and Mexico, with deep knowledge of local operating conditions and regulations.
Flotation-Focused Design:
Our mills are tuned specifically for lead-zinc ore processing, ensuring optimal particle size distribution to maximize recovery rates.
End-to-End Support:
From customized engineering and foundation drawings to on-site installation guidance, commissioning, and long-term spare parts supply.
Cost-Effective & Durable:
Built with premium materials and strict quality control, delivering low operational costs, minimal downtime, and long service life.
