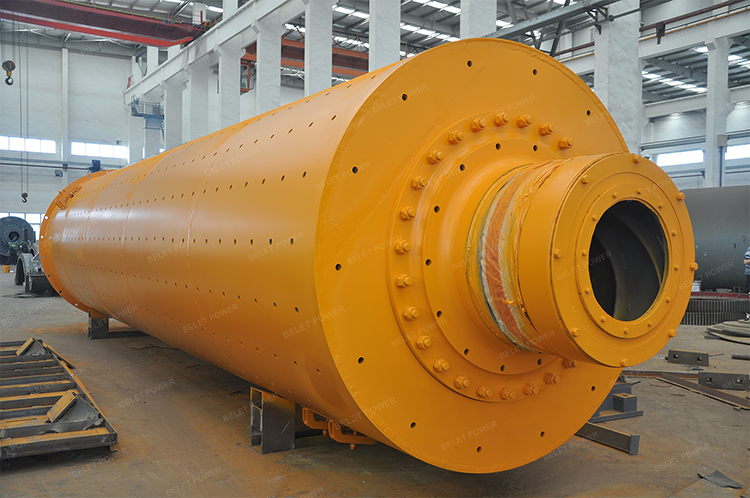

Molino de bolas de cemento

Nuestro molino de bolas de cemento de servicio pesado está diseñado para la molienda de clínker, caliza y escoria en líneas de producción de cemento. Designed for high capacity, low energy consumption, and long service life, it meets the rigorous demands of large-scale cement plants across the Middle East and North Africa (MENA). Ideal for new plant construction and capacity expansion projects.

Características técnicas principales

Sistema de molienda de alta eficiencia:

Optimized liner design and ball grading improve grinding efficiency by 15-20% compared to conventional mills.

Construcción robusta para climas MENA:

Heat-resistant components and heavy-duty shell withstand high temperatures and dusty operating environments.

Tecnología de accionamiento de ahorro de energía:

Low-power main motor with frequency conversion control reduces operational costs.

Compatibilidad de molienda húmeda y seca:

Supports both dry grinding (clinker, limestone) and wet grinding applications.

Diseño de fácil mantenimiento:

Accessible inspection doors, replaceable liners, and standardized spare parts minimize downtime.

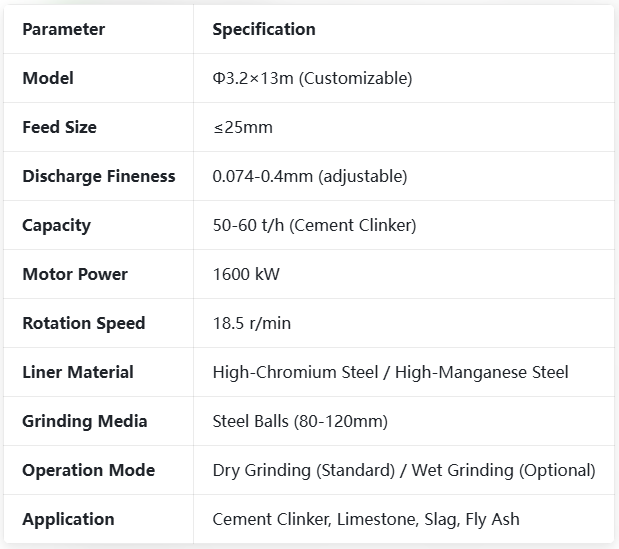

Parámetros técnicos

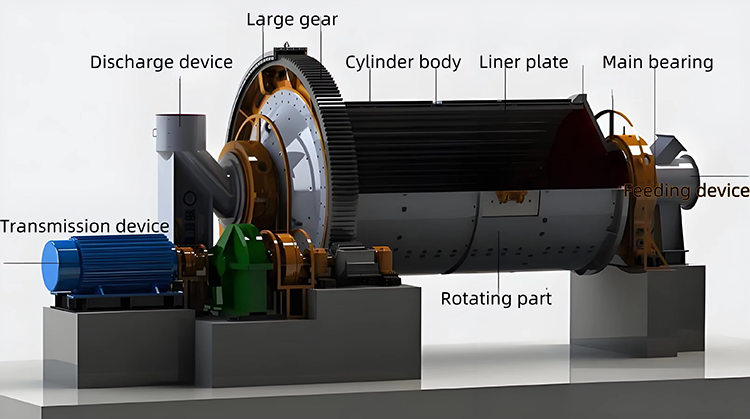

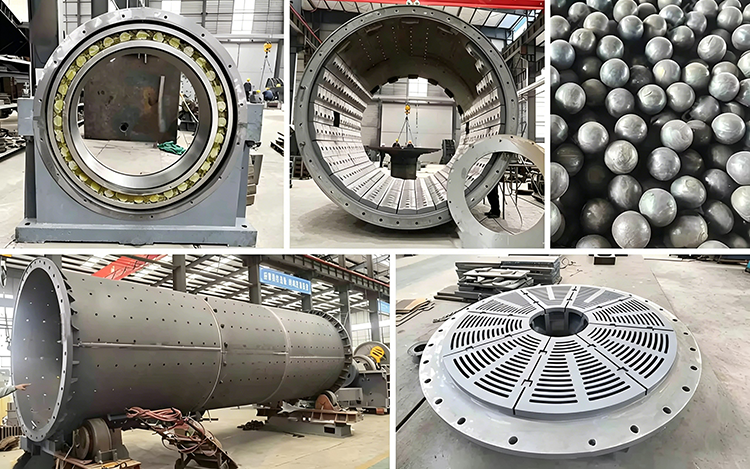

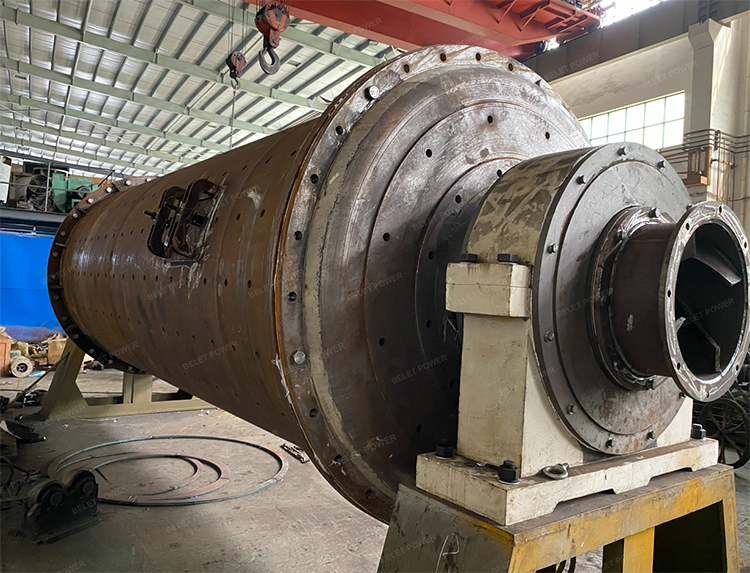

Estructura interna y componentes

Cylinder Shell: Thickened welded steel plate with reinforced structural ribs, designed for long-term heavy-load operation.

Feed & Discharge End: Hollow shaft with wear-resistant castings, ensuring smooth material flow and minimal leakage.

Main Bearing Assembly: Large spherical roller bearings with forced oil lubrication, supporting heavy loads and reducing friction loss.

Transmission System: Large girth gear and pinion, coupled with a high-efficiency reducer, delivering stable and low-noise power transmission.

Grinding Chamber: Lined with wear-resistant plates and equipped with lifting bars to enhance material tumbling and grinding efficiency.

Sealing System: Advanced labyrinth seals prevent dust ingress and oil leakage, ideal for the dusty MENA cement plant environment.

¿Por qué elegirnos?

 MENA-Focused Expertise: Proven experience in supplying cement mills to Saudi Arabia, UAE, Iraq, Algeria, and Egypt, with on-site installation and Arabic-speaking technical support.

Climate-Adapted Design: Components optimized for high temperatures and dusty conditions, reducing failure rates in harsh environments.

Reliable After-Sales Service: Local spare parts warehouses in key MENA ports ensure fast delivery of replacement parts.

Cost-Effective Solutions: Competitive pricing for new and refurbished mills, with flexible financing options for large-scale projects.

Custom Engineering: We tailor mill specifications to match your clinker hardness, production capacity, and plant layout requirements.
