Molino de bolas industrial para cobre y hierro
Heavy-Duty Ore Ball Mill is engineered for the most demanding mineral processing operations, including pre-concentration grinding of copper, iron, molybdenum, and other non-ferrous/ferrous ores, as well as processing refractory materials and abrasive tools.
Designed for continuous, high-volume operation, it delivers consistent particle size distribution, maximizing recovery rates in flotation and magnetic separation processes.
Core Technical Highlights
Heavy-Duty & Wear-Resistant Design
Built with thick steel shells and high-chrome alloy liners, our mill withstands the abrasion of hard ores and ensures long service life in harsh mining environments. The reinforced main bearing system reduces friction and heat buildup during 24/7 operation.
High-Efficiency Drive System
Optimized girth gear and pinion drive, paired with a low-speed, high-torque motor, delivers stable power transmission with minimal energy loss. The optional frequency conversion control allows precise adjustment of mill speed to match different ore hardness and fineness requirements.
Consistent & Uniform Grinding Performance
Advanced internal lifter design and media grading ensure even ore particle impact and grinding, producing a consistent product size (D80: 75–300μm) critical for efficient downstream beneficiation processes.
Customizable for Wet & Dry Applications
Available in wet overflow or grate discharge configurations for mineral processing, as well as dry grinding setups for refractory materials and abrasive tools, tailored to your specific production flow.
Low Maintenance & High Uptime
Easy-access inspection hatches, modular liner design, and standardized spare parts reduce maintenance time and costs. Our mills are built to operate reliably in remote mining sites across Russia, Kazakhstan, and Uzbekistan.

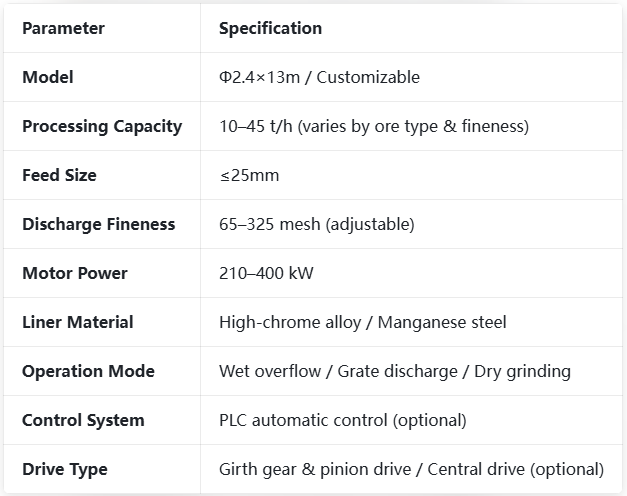

Key Technical Parameters
Why Choose US?
Proven Performance in Markets:
We have delivered dozens of ore ball mills to mining projects across Russia, Kazakhstan, and Uzbekistan, with a track record of reliable operation in extreme climates.
Tailored Solutions for Mining Operations:
We design mills based on your ore characteristics (hardness, moisture, target fineness) and plant layout, ensuring optimal performance for your beneficiation process.
Comprehensive After-Sales Support:
We provide on-site installation guidance, commissioning support, and a 12-month warranty, plus a full supply of spare parts for long-term maintenance.
Cost-Effective & Durable Construction:
Our mills are built with premium materials and strict quality control, delivering low operational costs and maximum uptime for your mining production line.
